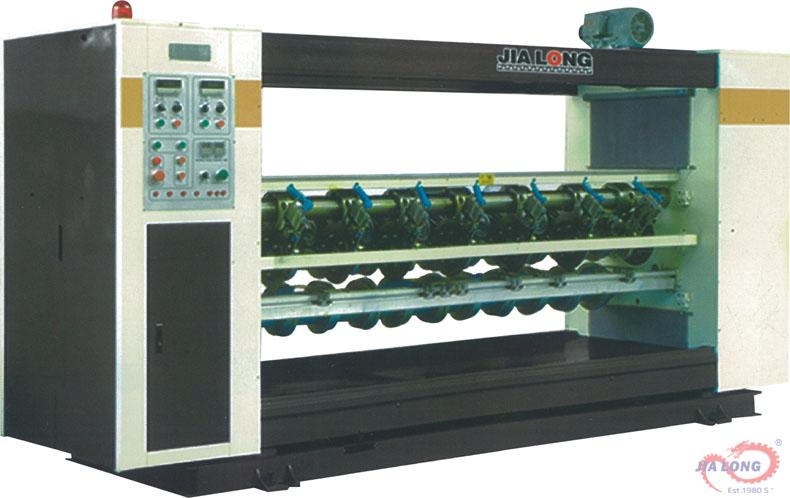

SLITTER SCORER I (ELECTRIC )

On the edge of the paperboard after slitting is tidy , straight , smooth , clean and no crush ;

Thin tungsten steel alloy blade , sharp and long life of dozens times of common steel blade ;

Patent grinding system applied for easy grinding and maintenance ;

Hand grinding the blade or foot grinding also applicable .Alternative grinding the blade when slitting the board , it can increase efficiency ;

5-line type score wheel, U type wheel and T type wheel to be optioned . Fine and effective scoring ;

Imported synchronous belt applied for conveying with higher precision , longer life and low noise ;

Guide wheel equipped under the machine stand. Electrical controlled alignment for ± 70mm;

The lifting type realizes the elevation of the slitting and the scoring shafts within 24 seconds. Two machines can be double used for still quicker changeover and higher efficiency.
