Single Facer Series

  • FINGERLESS SINGLE FACER II
FINGERLESS SINGLE FACER II

FINGERLESS SINGLE FACER II

  • Product description: FINGERLESS SINGLE FACER II
  • INQUIRY

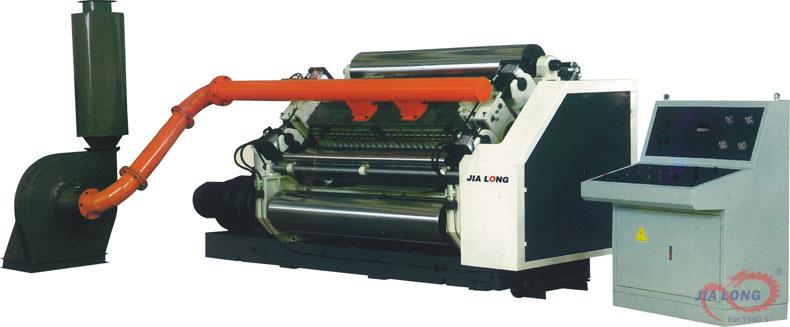

FINGERLESS SINGLE FACER II

l Adapting for middle and high speed production line.

l Adapting inside-draw vacuum structure with silencer, low noise.

l Glue thickness adjusted by electric and digltal display.

l Diameter of corrugating rolls: Dia310(320)mm, Dia360mm, Dia430mm, made from alloy steel 48CrMo, hardened treatment on the surface, precision grinding, coated with chrome, hardness reaching HRC58-62.

l Working surfaces of each paper-guiding roll. Preheater and pressure roll polished and coated with chrome.

l High temperature grease or automatic interval clrcular lubrication for choice.

l Adopting infrared detector, auto paper break protection, withdrawal of press roll and glue plate when breaking.

l Auto glue thickness adjust according to different speed (optional)

l Max speed : 120-300m/min

l Width : 1400mm-2500mm

l Dia of roll : 310, 360, 430, 480, 530mm
