DOUBLE FACER

Hot section heated by steam , hydraulic lifting , pressing separately according to number of layers of board , keeping proper pressure , facilitating formation of board ;

Pneumatic tension for upper belt , electric or auto alignment , keeping better operation ;

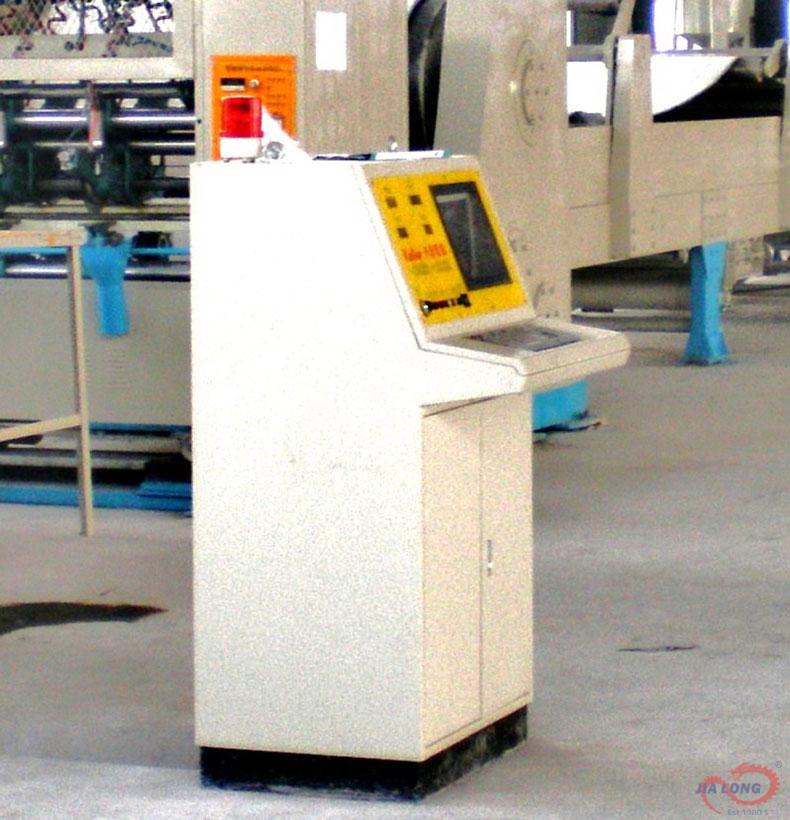

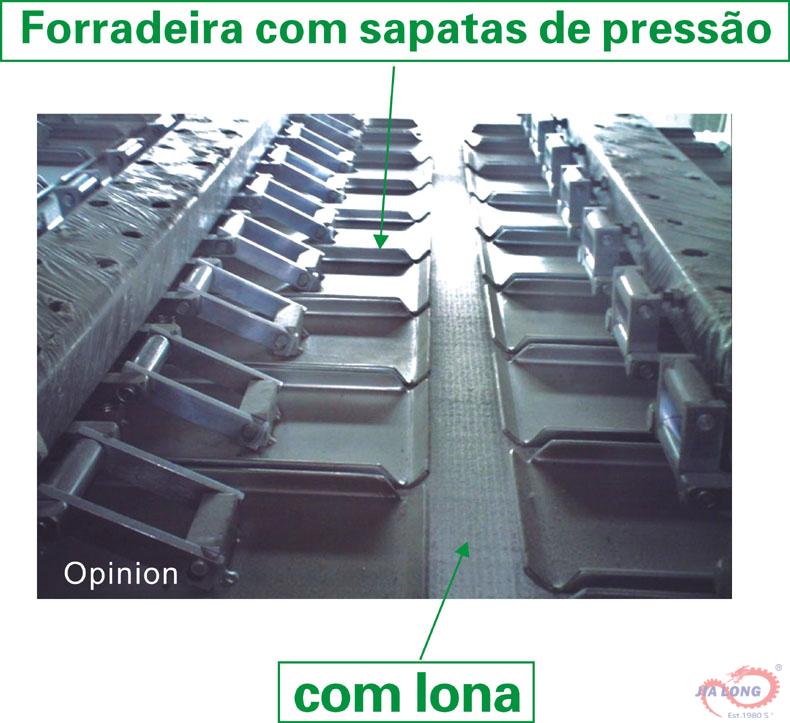

Press roll or thermal bar optional , the number of the thermal bar controlled by PLC or production management system ;

The number of hot plates decided by different speed require and width including(standard):8/12/15/18/21/24,size:600*160 (wxt) for every plates ;

Adjust steam consumption according to the speed of entire line , so as to control the temperature of the hot plates ( optional )
